Electron Products Inc.
Z SERIES SuperMetallized
POLYPULSE CAPACITORS
PARAMETRIC
TREND CURVES AND

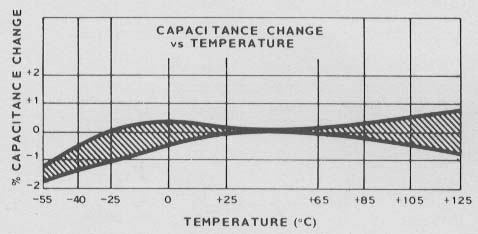

CAPACITANCE
Reference
MIL-STD-202, Method 305
Test
Frequency: 1000 Hz
Temperature:
+25°C
Capacitance
Change Over Temperature.
Acceptance
Limits:
@ -55°C = -2%
Maximum Change
@ +85°C = ±1%
Maximum Change
@ +125°C =
±2% Maximum Change

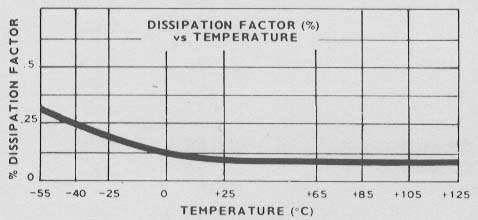

DISSIPATION FACTOR
Reference
MIL-STD-202,
Method 306
Test
Frequency: 100,000 Hz
Temperature:
+25°C
Acceptance
Limit: 2.0% Maximum < 5.0µf

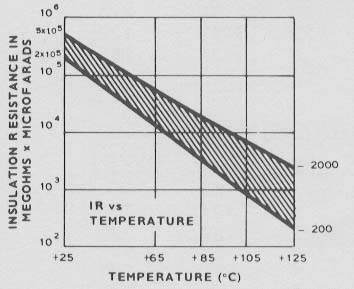

INSULATION RESISTANCE
Reference MIL-STD-202,
Method 302
Electrification
shall be 100 VDC, for
a time not
greater than 2 minutes.
Acceptance
Limits:
|
Test |
Megs x µf |
Megohms |
|
Temperature |
Minimum |
Need not exceed |
|
@ +25°C |
100,000 |
200,000 |
|
@ +85°C |
1,000 |
20,000 |
|
@ +125°C |
100 |
2,000 |
VOLTAGE
RATING
100% of
listed voltage rating from -55°C to +125°C.
VOLTAGE TEST
Reference
MIL-STD-202, Method 301. Surge current is limited to 1 ampere maximum. Voltage applied
for 1 minute (maximum) @ +25°C. Ground test is performed terminal to case
(where the case is not a terminal) at 200% of the DC voltage rating. Dielectric
strength test is performed terminal to terminal at 150% of the DC voltage
rating.
SuperMetallized PolyPulse Specs
SuperMetallized PolyPulse Z
Size Chart
