Electron Products Inc.
X SERIES POLYSTYRENE AND FOIL
CAPACITORS
PARAMETRIC
TREND CURVES AND
CAPACITANCE
Reference MIL-STD-202,
Method 305
Test
Frequency: 1000 Hz
Temperature:
+25°C

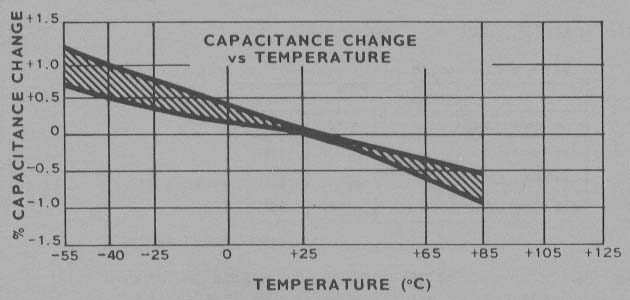

Temperature
Coefficient of Capacitance
-100ppm/°C ±
50ppm/°C
Capacitance
Retrace: Within ±0.2%
Capacitance
Stability With Time: Less than 0.1%

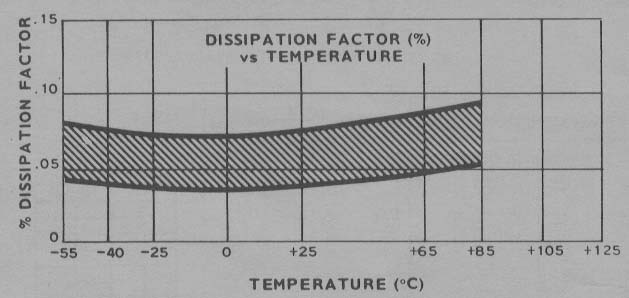

DISSIPATION FACTOR
Reference
MIL-STD-202,
Method 306
Test
Frequency: 1000 Hz
Temperature:
+25°C
Acceptance
Limit: 0.1% Maximum

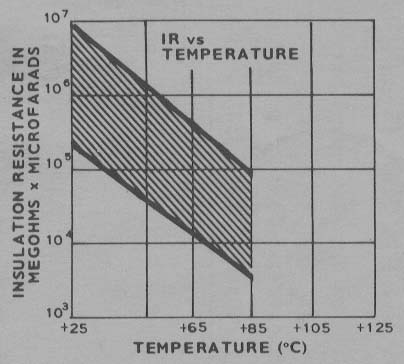

INSULATION RESISTANCE
Reference
MIL-STD-202, Method 302
Electrification
shall be at rated voltage
or 500 VDC, whichever is less and for
a time not greater than 2 minutes.
Acceptance
Limits:
|
Test |
Megs x µf |
Megohms |
|
Temperature |
Minimum |
Need not exceed |
|
@ +25°C |
200,000 |
500,000 |
|
@ +65°C |
10,000 |
100,000 |
|
@ +85°C |
4,000 |
40,000 |
VOLTAGE
RATING
100% of
listed voltage rating from -55°C to +65°C,
derate linearly to 60% of
the listed voltage rating at +85°C.
VOLTAGE TEST
Reference MIL-STD-202, Method 301. Surge current is
limited to 1 ampere maximum. Voltage applied for 1 minute (maximum) @ +25°C.
Ground test is performed terminal to case (where the case is not a terminal) at
200% of the DC voltage rating. Dielectric strength test is performed terminal
to terminal at 200% of the DC voltage rating.
