Electron Products Inc.
D SERIES METALLIZED POLYESTER
CAPACITORS
PARAMETRIC TREND
CURVES AND
CAPACITANCE
Reference
MIL-STD-202, Method 305
Test
Frequency: 1000 Hz
Temperature:
+25°C

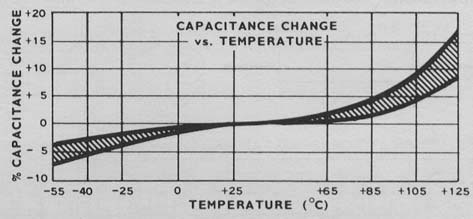

Capacitance
Change Over Temperature.
Acceptance
Limits:
@ -55°C = -7%
Maximum Change
@ +85°C = +5%
Maximum Change
@ +125°C =
±16% Maximum Change

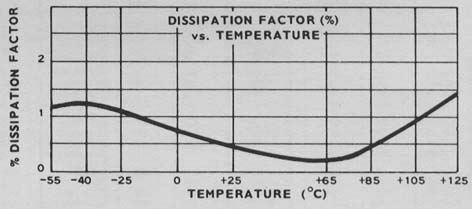

DISSIPATION FACTOR
Reference
MIL-STD-202,
Method 306
Test
Frequency: 1000 Hz
Temperature:
+25°C
Acceptance
Limit: 0.65% Maximum

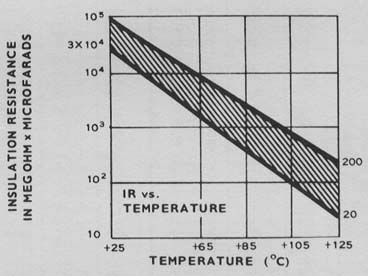

INSULATION RESISTANCE
Reference MIL-STD-202,
Method 302
Electrification
shall be at rated voltage
or 500 VDC,
whichever is less and for
a time not
greater than 2 minutes.
Acceptance
Limits:
|
Test |
Megs x µf |
Megohms |
|
Temperature |
Minimum |
Need not exceed |
|
@ +25°C |
10,000 |
30,000 |
|
@ +85°C |
100 |
1,000 |
|
@ +125°C |
10 |
100 |
VOLTAGE
RATING
100% of
listed voltage rating from -55°C to +85°C,
derate
linearly to 50% of the listed voltage rating at +125°C.
VOLTAGE TEST
Reference
MIL-STD-202, Method 301. Surge current is limited to 1 ampere maximum. Voltage
applied for 1 minute (maximum) @ +25°C. Ground test is performed terminal to
case (where the case is not a terminal) at 200% of the DC voltage rating.
Dielectric strength test is performed terminal to terminal at 150% of the DC
voltage rating.
